Lippert Solera 5000 Slide-Out Awning 86-91" Black

Looking for Extra Protection for Your RV Slide-Out?

The Lippert Solera 5000 Series Slide-Out Awning helps protect your RV slide-out roof and opening from debris and water infiltration. Designed for a flange-to-flange width range of 86 to 91 inches, this automatic slide topper extends and retracts with the slide-out. It features solid black vinyl fabric, black castings, a fixed-pitch design, and includes mounting hardware and rail.

✅ Key Benefits

• Helps protect the slide-out from debris and water infiltration
• Automatically extends and retracts with the RV slide-out
• Provides coverage over the slide-out roof and RV sidewall slide-out opening
• Helps prevent leaves, bird droppings, branches, and other debris from reaching the slide-out roof and seals
• Anti-scuff and anti-mildew fabric helps withstand regular outdoor use
• Heated wedge-welded construction provides strong, leak-resistant seams
• Black solid vinyl fabric coordinates with many RV exteriors
• Mounting hardware and rail are included
• Backed by a limited 1-year warranty

🚗 Will This Work For My RV?

This Solera 5000 Series Slide-Out Awning is designed for RV slide-outs with a flange-to-flange width between 86 and 91 inches and a roof range of 81 to 86 inches. It has a 96 inch slider length, 91 inch fabric length, and 48 inch extension. Measure your slide-out carefully before ordering and verify that your dimensions fall within the specified ranges.

🔌 Expandable / Upgrade Path

Pair this slide-out awning with compatible Solera slide-out accessories and other RV exterior maintenance and protection products. When selecting replacement or additional components, confirm compatibility with the Solera 5000 Series and your specific slide-out dimensions.

📦 Product Overview

The Lippert Solera 5000 Series Slide-Out Awning provides automatic protection whenever your slide room is extended. Permanently attached to the slide room, the topper extends and retracts along with the slide-out to provide coverage over the roof and sidewall opening. The solid black vinyl fabric features anti-scuff and anti-mildew properties, while heated wedge-welded seams help provide a strong, leak-resistant construction. Black castings, mounting hardware, and rail are included for installation.

🏕️ Use Cases

• Protecting compatible RV slide-out roofs from leaves and debris
• Helping reduce water infiltration around the slide-out area
• Protecting slide-out seals from branches, bird droppings, and other debris
• Adding automatic coverage to a compatible RV slide room
• Providing permanent slide-out protection that operates with the slide room

📊 Specifications

• Brand: Lippert
• Series: Solera 5000 Series
• Manufacturer Part Number: V000168106
• Product Type: RV Slide-Out Awning
• Operation Type: Automatic
• Slider Length: 96 Inch
• Extension: 48 Inch
• Roof Range Size: 81 Inch To 86 Inch
• Flange Range Size: 86 Inch To 91 Inch
• Fabric Length: 91 Inch / 7 Feet 7 Inch
• Fabric Type: Vinyl
• Fabric Pattern: Black Solid
• Fabric Colour Family: Black/ Gray/ Silver
• Fabric Properties: Anti-Scuff/ Anti-Mildew
• Weather Cover Type/Material: Full Vinyl Cover
• Weather Cover Colour: Black
• Casting Colour: Black
• Pitch: Fixed

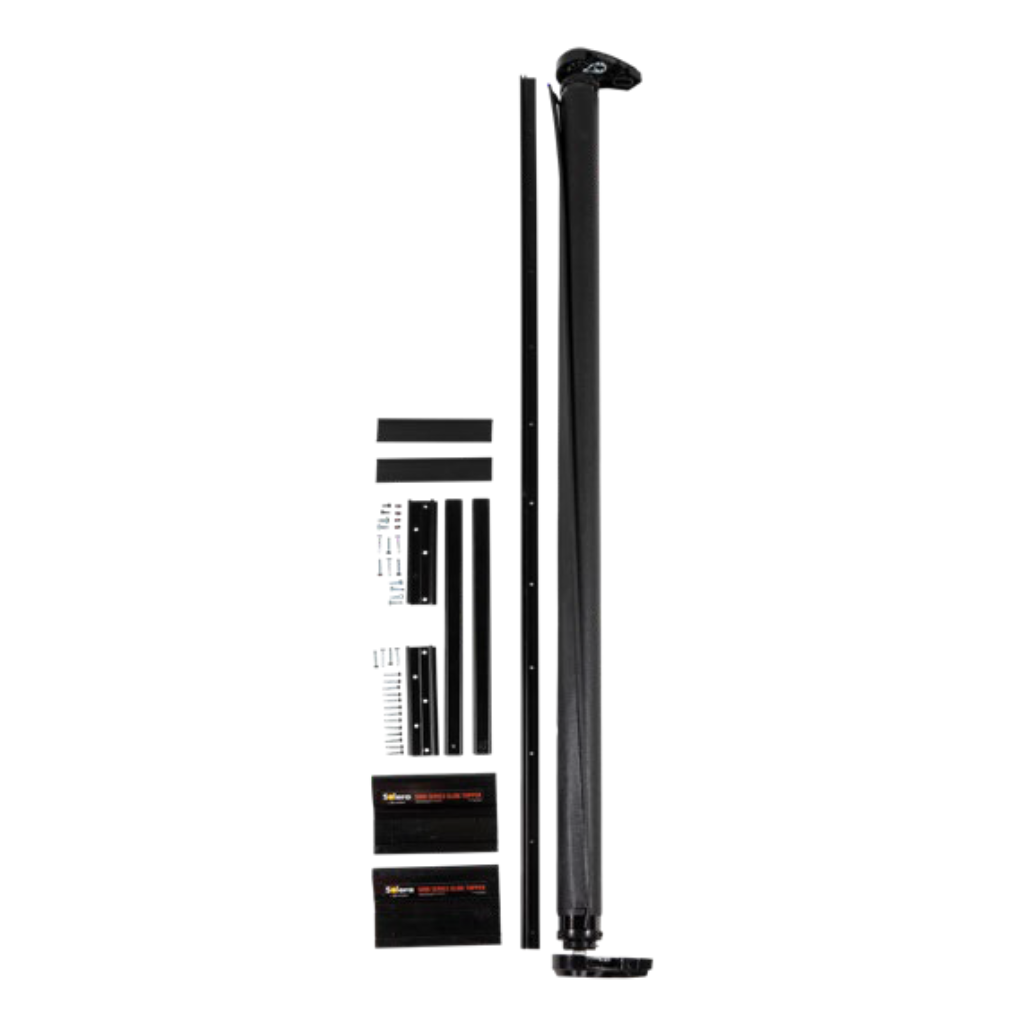

• Mounting Hardware: Included
• Rail: Included
• Estimated Install Time: 3 Hours
• Warranty: Limited 1-Year Warranty

🔧 Compatibility & Fitment

This slide-out awning is designed for a flange-to-flange width range of 86 to 91 inches and a roof range of 81 to 86 inches. The assembly has a 96 inch slider length, 91 inch fabric length, and 48 inch extension. Fitment is based on the dimensions of the RV slide-out rather than RV make or model, so measure the slide-out and verify the required flange-to-flange and roof dimensions before ordering.

💡 ArrKann Pro Tips

• Measure the slide-out carefully before ordering and use the specified flange-to-flange and roof ranges to determine fitment.
• Do not select a slide topper based only on the fabric length, as the flange-to-flange measurement is an important fitment specification.
• Confirm there is appropriate mounting space around the slide-out for the awning assembly and rail.
• Inspect the slide-out roof and seals before installation and remove accumulated debris.
• Periodically inspect the vinyl fabric, mounting hardware, and slide-out area as part of regular RV exterior maintenance.
• The manufacturer lists an estimated installation time of 3 hours; installation requirements can vary by RV configuration.

❓ Frequently Asked Questions

Q: What size slide-out does this awning fit?

A: It is designed for a flange-to-flange width range of 86 to 91 inches and a roof range of 81 to 86 inches.

Q: Does the awning operate automatically?

A: Yes. The slide topper automatically extends and retracts with the RV slide-out.

Q: How far does the awning extend?

A: The specified extension is 48 inches.

Q: What is the fabric length?

A: The fabric is 91 inches, or 7 feet 7 inches, in length.

Q: What is the fabric made from?

A: It uses solid black vinyl fabric with anti-scuff and anti-mildew properties.

Q: Is mounting hardware included?

A: Yes. Mounting hardware and rail are included.

Q: What warranty is included?

A: The slide-out awning is backed by a limited 1-year warranty.
