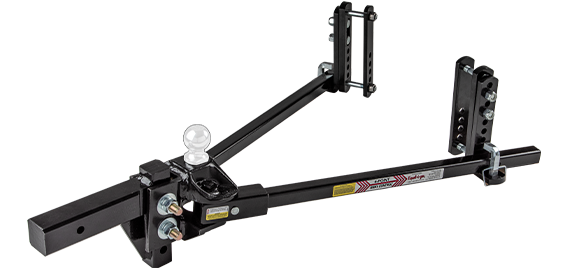

Equal-i-zer Trunnion Bar Weight Distribution Hitch – 16,000 lb GVW

Need Heavy-Duty Weight Distribution and Built-In Sway Control?

The Equal-i-zer Weight Distribution Hitch is designed for heavy-duty towing applications with up to 1,600 pounds of tongue weight and 16,000 pounds of gross trailer weight. Built for a 2-1/2 inch receiver, this steel trunnion-bar system combines weight distribution with built-in sway control and includes a 12 inch shank with adjustable rise and drop positioning. This does not include a hitch ball.

✅ Key Benefits

• Supports up to 16,000 pounds of maximum gross trailer weight
• Rated for up to 1,600 pounds of maximum tongue weight

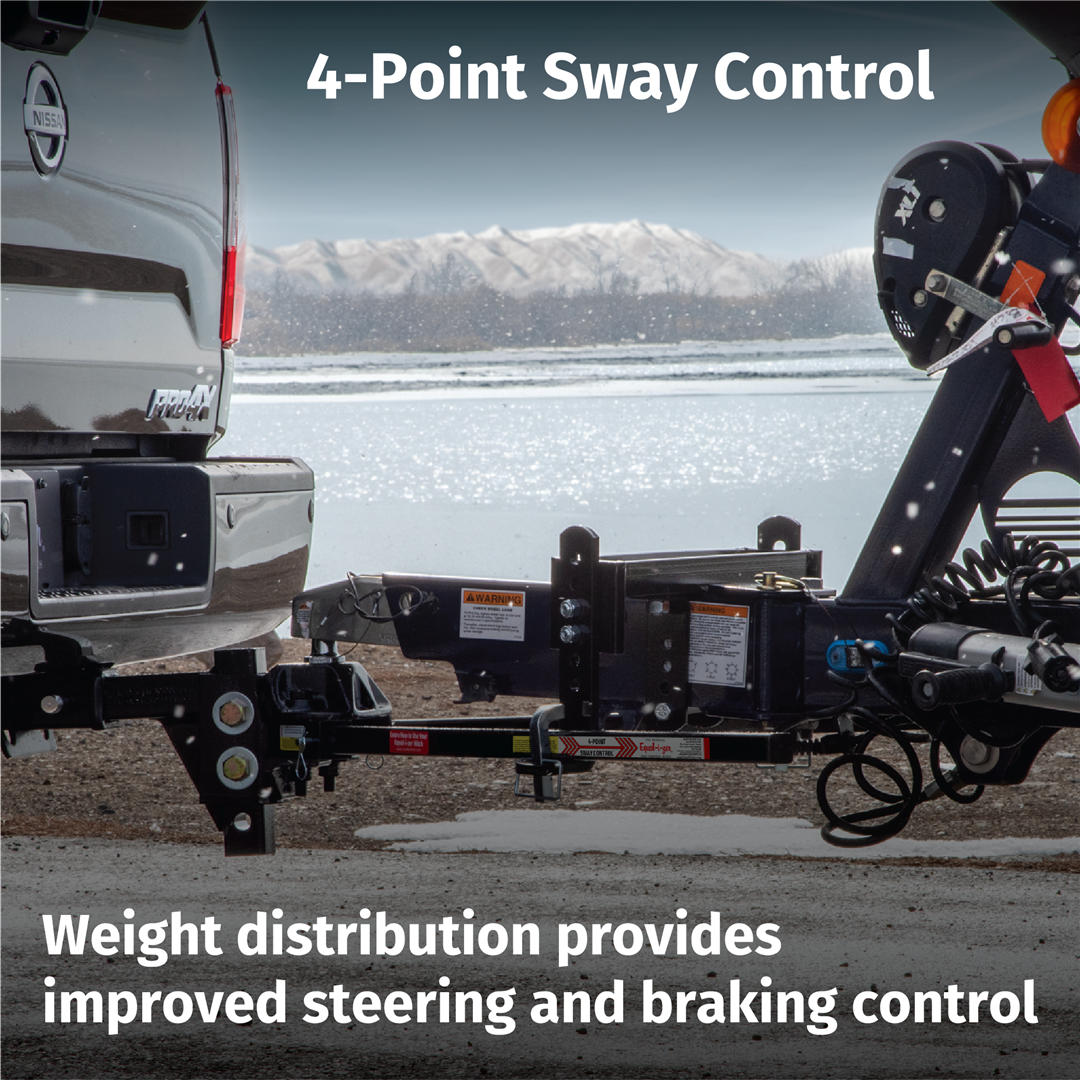

• Built-in sway control helps provide additional towing stability
• Trunnion-bar design for heavy-duty towing applications
• Designed for 2-1/2 inch trailer hitch receivers
• Includes a 12 inch shank
• Provides approximately 3 inches of drop or 6 inches of rise
• Includes two sway control brackets
• Durable steel construction with a black painted finish
• Backed by a limited lifetime warranty

🚗 Will This Work For My RV?

This Equal-i-zer weight distribution hitch is designed for towing applications using a 2-1/2 inch receiver, with a maximum gross trailer weight of 16,000 pounds and maximum tongue weight of 1,600 pounds. The included 12 inch shank provides approximately 3 inches of drop or 6 inches of rise. Confirm your tow vehicle receiver size, loaded trailer weight, loaded tongue weight, required hitch height, and the ratings of all towing components before selecting a weight distribution system.

🔌 Expandable / Upgrade Path

Complete your towing setup with an appropriately rated and compatible hitch ball, trailer brake controller, hitch lock, trailer wiring accessories, and other towing components as required. A hitch ball is not included with this older-model unit. Always confirm the size, fitment, and weight rating of additional towing components before use.

📦 Product Overview

The Equal-i-zer 90-00-1600 is a heavy-duty trunnion-bar weight distribution hitch designed for trailers with up to 1,600 pounds of tongue weight and 16,000 pounds of gross trailer weight. Built-in sway control and two sway control brackets support a stable towing setup. The included steel shank is 12 inches long, fits a 2-1/2 inch receiver, and provides adjustable rise or drop positioning to help establish the appropriate towing height. This specific model unit does not include a hitch ball.

🏕️ Use Cases

• Heavy-duty travel trailer towing
• Trailers requiring up to 1,600 pounds of tongue weight capacity
• Trailers with gross weights up to 16,000 pounds
• Tow vehicles equipped with a 2-1/2 inch hitch receiver
• Towing applications requiring integrated weight distribution and sway control
• Applications requiring adjustable rise or drop for proper trailer setup

📊 Specifications

• Brand: Equal-i-zer
• Manufacturer Part Number: 90-00-1600
• Product Type: Weight Distribution Hitch
• Type: Trunnion Bar
• Receiver Size: 2-1/2 Inch
• Maximum Gross Trailer Weight: 16,000 Pound
• Maximum Tongue Weight: 1,600 Pound
• Sway Control: Built-In
• Sway Control Brackets: 2
• Shank: Included
• Shank Length: 12 Inch
• Nominal Drop: 3 Inch
• Maximum Drop From Top Of Hitch Receiver Opening: 2.9 Inch
• Nominal Rise: 6 Inch
• Maximum Rise From Top Of Hitch Receiver Opening: 5.9 Inch
• Hitch Ball: Not Included
• Universality: Fully Universal
• Material: Steel
• Colour/Finish: Black Painted
• Warranty: Limited Lifetime Warranty
• Fulfilment: Pickup In Store Only

🔧 Compatibility & Fitment

This system is designed for a 2-1/2 inch hitch receiver and is rated for a maximum gross trailer weight of 16,000 pounds and maximum tongue weight of 1,600 pounds. The 12 inch shank provides a nominal 3 inch drop or 6 inch rise, with maximum measurements specified as 2.9 inches of drop and 5.9 inches of rise from the top of the hitch receiver opening. Verify the loaded trailer weight, loaded tongue weight, receiver size, required hitch height, and ratings of your tow vehicle and towing components before use. A compatible, appropriately rated hitch ball is required separately.

💡 ArrKann Pro Tips

• Choose a weight distribution system based on the trailer's actual loaded tongue weight, not just its unloaded specification.
• Confirm that your tow vehicle is equipped with a compatible 2-1/2 inch receiver.
• Verify that the 12 inch shank provides the required rise or drop to establish the appropriate trailer towing height.
• Remember that this specific model unit does not include a hitch ball, so a compatible and appropriately rated ball will be required separately.
• Make sure the tow vehicle, receiver, hitch ball, and all other towing components are appropriately rated for the trailer being towed.
• Follow Equal-i-zer setup instructions when adjusting the weight distribution and sway control components.
• Inspect the hitch, brackets, bars, and mounting points regularly as part of your towing maintenance routine.

❓ Frequently Asked Questions

Q: What is the maximum trailer weight rating?

A: This hitch is rated for a maximum gross trailer weight of 16,000 pounds.

Q: What is the maximum tongue weight rating?

A: The maximum tongue weight rating is 1,600 pounds.

Q: What receiver size does this hitch require?

A: It is designed for a 2-1/2 inch trailer hitch receiver.

Q: Does this weight distribution hitch include sway control?

A: Yes. The system features built-in sway control and includes two sway control brackets.

Q: Is a hitch ball included?

A: No. This specific model unit does not include a hitch ball. A compatible and appropriately rated hitch ball must be obtained separately.

Q: What size is the included shank?

A: The included shank is 12 inches long and fits a 2-1/2 inch receiver.

Q: How much rise and drop does the shank provide?

A: The specifications list a nominal 3 inch drop and 6 inch rise, with maximum measurements of 2.9 inches of drop and 5.9 inches of rise from the top of the hitch receiver opening.

Q: Can this item be shipped?

A: No. This product is available for pickup in store only through ArrKann RV.

🚚 Pickup / Shipping

Pickup In Store Only. This product is not available for shipping. Contact ArrKann RV for current availability and pickup options at Grande Prairie, AB, Acheson, AB, Red Deer, AB, Carstairs, AB, Calgary, AB, or Medicine Hat, AB. Store availability may vary.
