- Sku: 601320114813
- Vendor: RV Designer

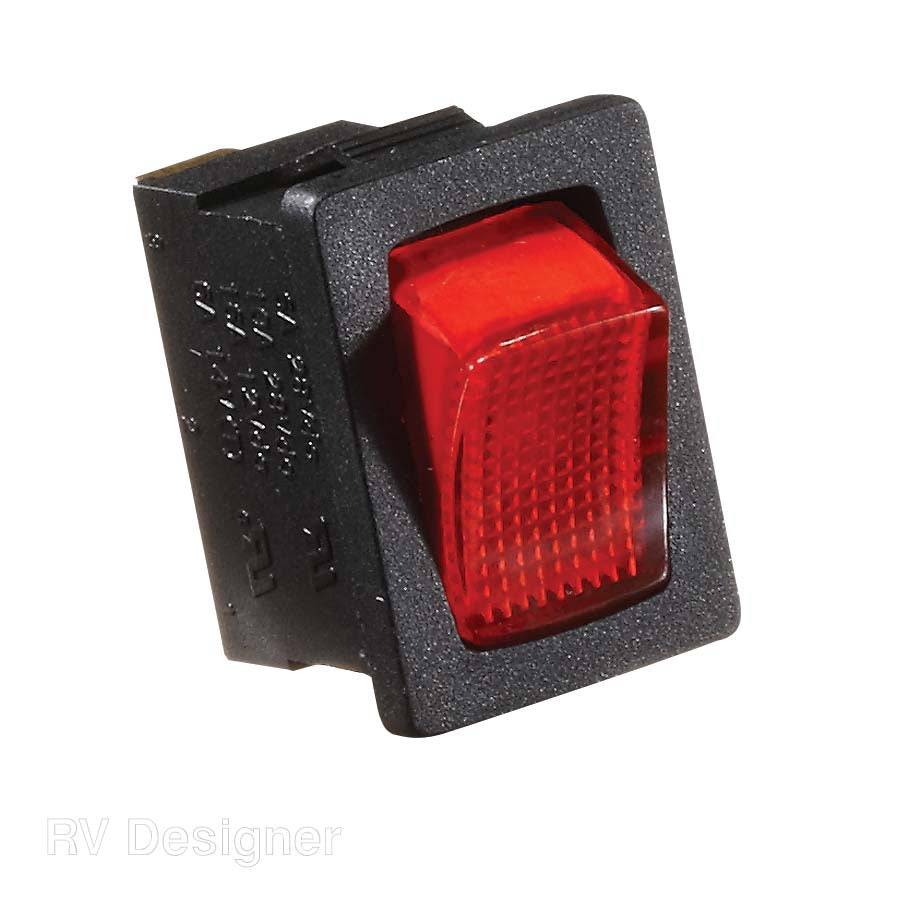

RV Designer Illuminated Rocker Switch On‑Off 20 Amp 14V
$15.95 CAD
Shipping calculated at checkout.
Just 4 left. Order soon!
Control high‑draw RV systems with confidence using this RV Designer illuminated rocker switch. Rated for up to 20 amps, this on‑off SPST switch is ideal for water pumps, water heaters, lighting, and other critical RV appliances—while the red indicator light gives you instant visual confirmation when power is on.
⚡ Features & Benefits
- 🔴 Red illuminated indicator clearly shows when the circuit is powered
- ⚡ Handles up to 20 amps for higher‑load RV appliances
- 🚐 Perfect for lights, water pumps, water heaters, and accessories
- 🧱 Durable rocker design built to withstand RV vibration
- 🔧 Simple snap‑in wall mount makes replacement fast and clean
🔹 Key Features
- On‑off rocker switch with red illumination
- Single pole single throw (SPST) operation
- 20 amp maximum current rating
- Black housing for a clean, factory look

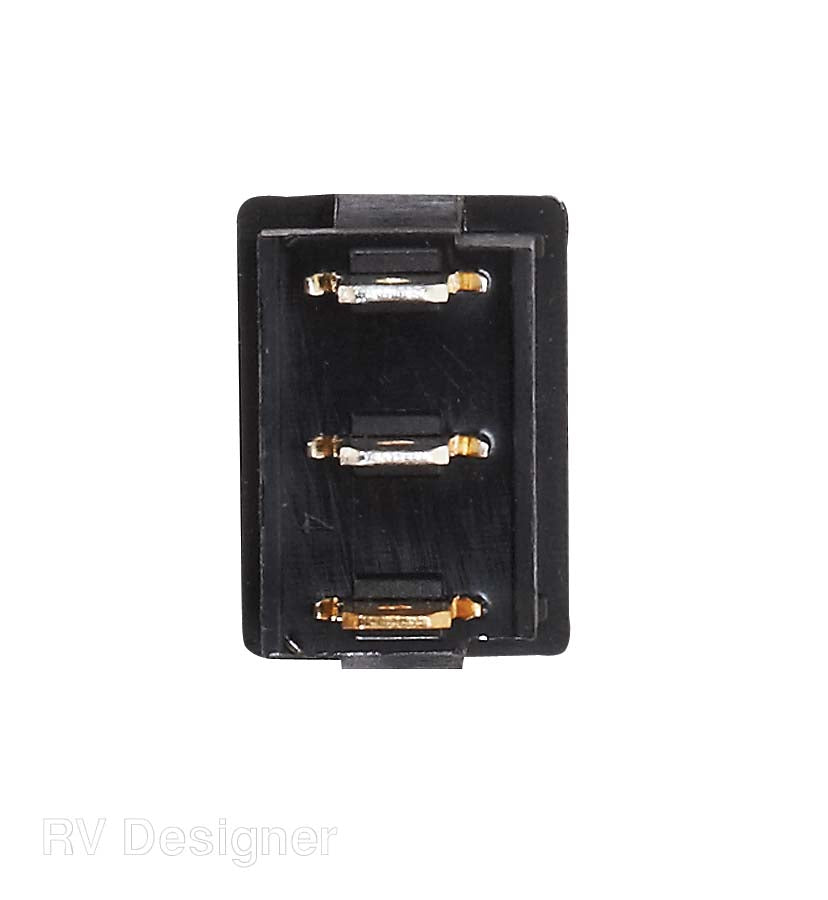

- Male blade terminals for secure connections
🧩 Common Problems Solved
- Unsure if an appliance is powered on or off
- Switches overheating due to insufficient amp rating
- Failed or flickering indicator lights
- Cracked or unreliable wall switches
🛠 When Should You Replace This Part?
- Switch no longer illuminates when powered
- Appliance works intermittently or not at all
- Existing switch is rated too low for the circuit
- Rocker feels loose, sticky, or worn
📏 Specifications
- Brand: RV Designer
- Product Type: Illuminated rocker switch
- Switch Positions: On‑Off
- Operation: Single Pole Single Throw (SPST)
- Current Rating: 20 Amp max
- Voltage: 14 Volt
- Illumination: Red
- Color: Black
- Connector Gender: Male
- Terminal Type: Blade
- Mount Location: Wall mount
- Quantity: Single
📐 Dimensions / Weight
- Cutout Size: 0.519 inch x 0.756–0.779 inch
- Weight: Not provided by manufacturer
🧩 Compatibility
- Compatible with RV 12–14V DC systems
- Suitable for lighting, water pumps, water heaters, and similar RV appliances
🔧 Installation / Usage
Disconnect RV power before installation. Remove the existing switch, connect wiring to the blade terminals, and snap the switch into the wall cutout. Restore power and verify illumination and operation.
Disconnect RV power before installation. Remove the existing switch, connect wiring to the blade terminals, and snap the switch into the wall cutout. Restore power and verify illumination and operation.
📦 What’s Included
- Illuminated on‑off rocker switch
